Since 2015, Auto Electric Drive System Wuxi Co., Ltd. has been committed to creating more comfortable travel or working conditions for customers. With advocating innovation as its cultural concept and relying on key technologies for its products, the Aides working team supports enterprises or individuals in coping with the challenges of complex tasks.
At present, the AEDS technical team has successfully solved the following problems, including providing different customers with distributed drive components of new energy vehicles - hub motor powertrain, rail vehicle power system, deep submersible propulsion, collaborative robot joints Motors and other high-end manufacturing key components. The development of new components saves time for their new product development and provides convenience and economic benefits.
Time continues to prove that AEDS makes people's travel and work better.
ACTION
Action, we create new technologies with better action, and pay attention to action in innovation
EXCELLENT
Excellent, try to do better. Only excellent products can guide the market
DEVELOP
Development, we advocate innovation, and innovation can move from excellence to excellence
SMART
Smart, finding trends and team wisdom are the source of our strength
AEDS believes in the craftsmanship spirit of “challenging the impossible” and tends to influence its partners, customers and markets with high quality products and advanced design concepts. Facing questioning and challenging of many harsh scenarios, the AEDS team has proved itself with a professional spirit and pioneering.

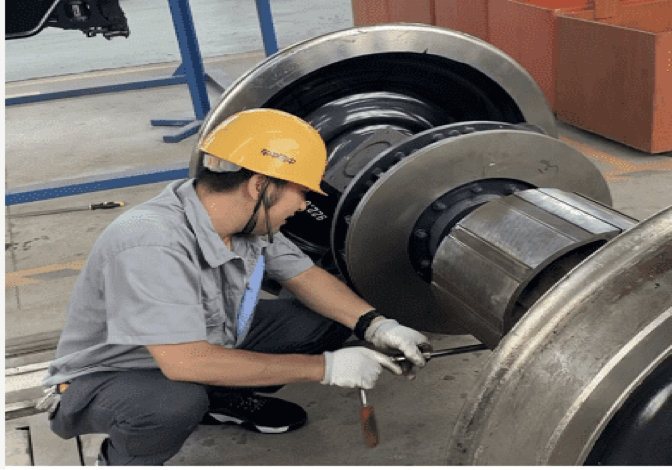

In September 2020, AEDS successfully delivered the powertrain (including axle direct-drive motor, direct-drive motor control system and power battery pack) of the world's first X+ intelligent self-traction flat car to CRRC Shandong Branch. This project made its global debut in Berlin, Germany on September 20, 2022.
In June 2021, the X+ intelligent self-traction flat car passed the national acceptance and was praised highly by the senior leaders of China State Railway Group Co., Ltd.
IIn September 2022, InnoTrans 2022 was ceremoniously opened. Once the X+ intelligent self-traction flat car was unveiled, it had attracted a lot of attention from local media and industry customers, and won full affirmation and praise from European customers.
.

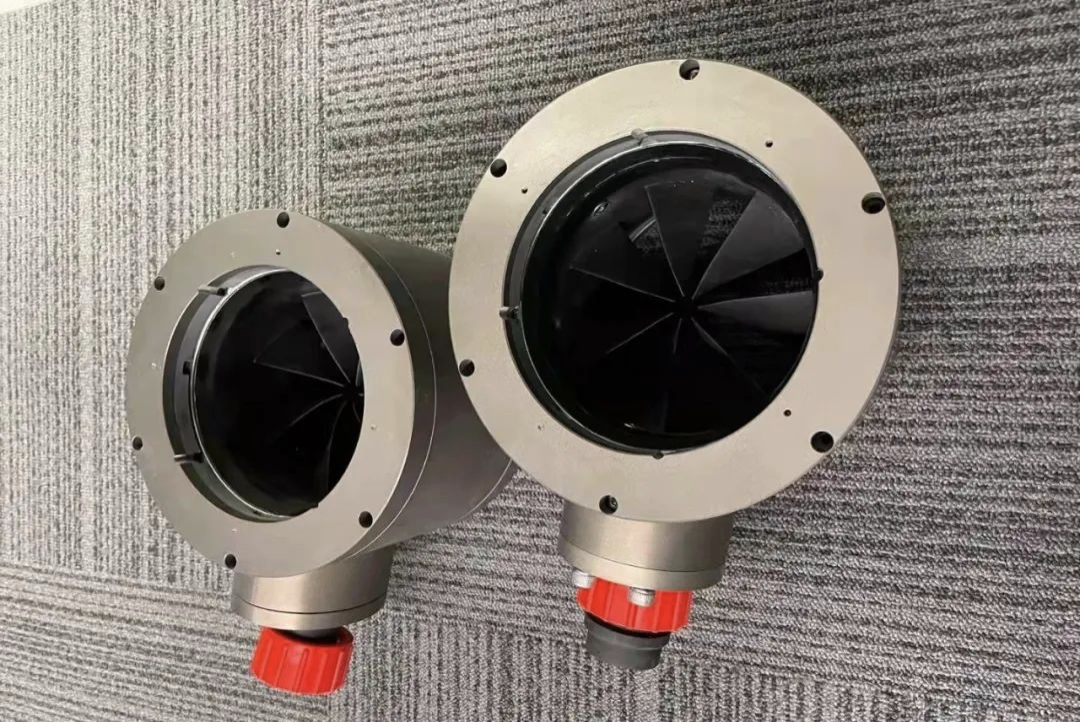

In February 2022, AEDS provided a shaftless propeller prototype to a customer in Suzhou. After comparing the AEDS shaftless propeller with similar foreign products, the customer concluded that the AEDS shaftless propeller had better performance.
In March 2022, AEDS supplied a small batch of low-speed hub motors to the $100 billion unicorn PIX MOVING Inc.

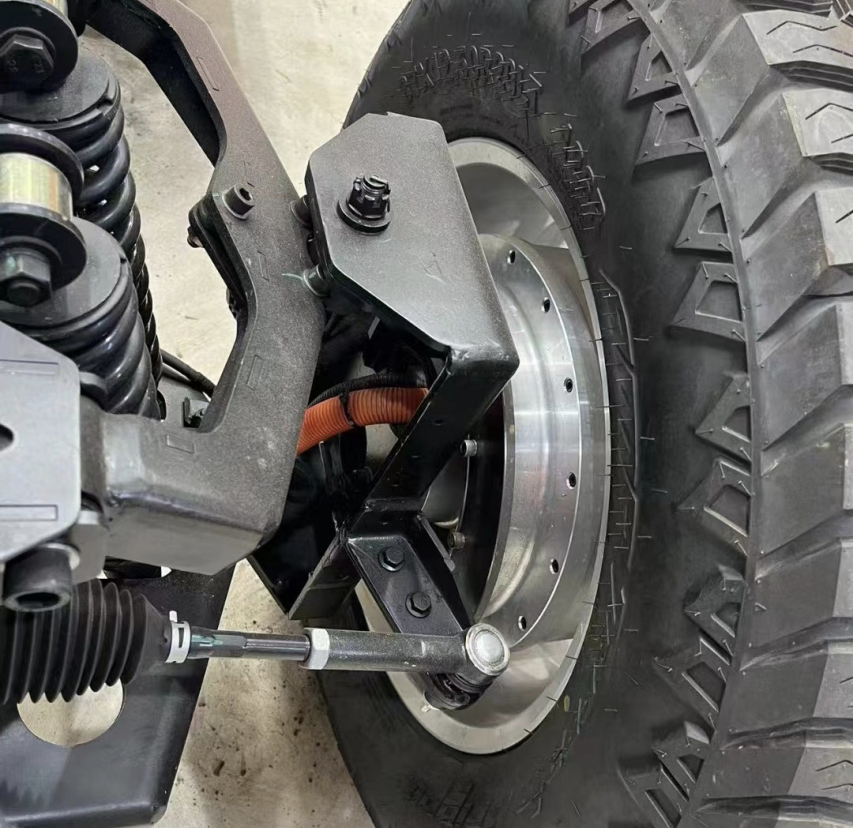

When AEDS paid a return visit to PIX in July 2022, they saw the wire-controlled chasses equipped with AEDS hub motors. Through communication, we learned that the AEDS hub motors had passed the preliminary test of PIX and the AEDS direct-drive hub motors have received unimaginable praise from PIX.
AEDS hub motors have incorporated the spirit of challenging the world's best into the corporate culture. The hub motors and frameless motors currently made by AEDS, these direct-drive motors, are already able to keep abreast of the internationally renowned high-end direct-drive motors.

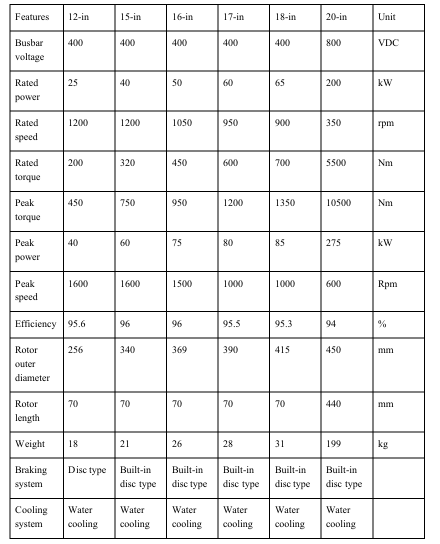

Comparison table of models and parameters of AEDS hub motors
Note: Weight (including bearings, excluding controllers and brakes)
Comparison table of models and parameters of AEDS frameless motors
Frameless motor | FM-2510 | FM-3808 | FM-5010 | FM-5016 | FM-7013 | FM-7021 | FM-8507 | FM-8516 | FM-8525 | FM-8527 | FM-11527 | FM-11554 |
Basic parameters | ||||||||||||
Power P (w) | 61 | 105 | 160 | 180 | 275 | 280 | 300 | 425 | 435 | 440 | 760 | 775 |
Rated torque TN (N•m) | 0.049 | 0.11 | 0.31 | 0.5 | 0.75 | 1.25 | 0.71 | 1.62 | 2.6 | 2.8 | 5.8 | 11.4 |
Peak torque Tm (N•m) | 0.21 | 0.4 | 0.88 | 1.4 | 2.52 | 4.18 | 2.05 | 4.63 | 7.4 | 8.1 | 14.6 | 29.3 |
Speed n (rpm) | 12000 | 9000 | 5000 | 3500 | 3500 | 2140 | 4000 | 2500 | 1600 | 1500 | 1300 | 650 |
Diameter D (mm) | 25 | 38 | 50 | 50 | 69 | 69 | 85 | 85 | 85 | 85 | 115 | 115 |
Length L (mm) | 15.3 | 15.5 | 17 | 23 | 24 | 32.5 | 19.5 | 28.6 | 38 | 40.6 | 40 | 69 |
Weight m (g) | 30 | 50 | 80 | 120 | 225 | 335 | 180 | 385 | 610 | 660 | 1100 | 2160 |
Rated voltage UN (V) | 24 | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
Rated current IN (A-pk) | 2.8 | 5 | 5 | 5 | 9 | 9 | 11 | 11 | 11 | 11 | 20 | 20 |
Copper consumption at TN PCu (W) | 3.3 | 4.4 | 9.4 | 13.5 | 14.4 | 19.5 | 8.2 | 12.7 | 16.5 | 17.3 | 34.2 | 66 |
Torque constant kT (N•m /A) | 0.0175 | 0.022 | 0.062 | 0.1 | 0.083 | 0.139 | 0.064 | 0.147 | 0.236 | 0.254 | 0.29 | 0.57 |
Wire resistance Ra (mΩ) | 550 | 240 | 500 | 720 | 235 | 320 | 90 | 140 | 182 | 190 | 114 | 220 |
Wire inductance La (μH) | 160 | 140 | 340 | 400 | 300 | 430 | 160 | 330 | 500 | 540 | 280 | 600 |
Number of pole-pairs p (-) | 7 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 15 | 15 |
Efficiency η (％) | 86 | 88 | 91 | 90 | 91 | 92 | 91 | 93 | 93 | 93 | 93 | 93 |
Structure outline dimensions | ||||||||||||
Stator diameter D (mm) | 25 | 38 | 50 | 50 | 69 | 69 | 85 | 85 | 85 | 85 | 115 | 115 |
PCB diameter G (mm) | 23.2 | 36.2 | 48.5 | 48.5 | 66 | 66 | 82 | 82 | 82 | 82 | 112 | 112 |
Winding end diameter g (mm) | 23 | 36 | 47 | 47 | 64 | 64 | 80 | 80 | 80 | 80 | 110 | 110 |
Rotor inner diameter d H7 (mm) | 11.6 | 18 | 30 | 30 | 42 | 42 | 52 | 52 | 52 | 52 | 74 | 74 |
Stator lenght L (mm) | 15.3 | 15.5 | 17 | 23 | 24 | 32.5 | 19.5 | 28.6 | 38 | 40.6 | 40 | 69 |
Rotor length l (mm) | 9.7 | 8.1 | 10.1 | 16.1 | 12.7 | 20.7 | 6.9 | 15.6 | 25 | 27.2 | 27 | 54 |
Respect for Innovation is the driving force behind the automotive motor team of AEDS.Since the founding of the company，three invention patents have been authorized, 28 utility model patents have been authorized, and 32 invention patents are being accepted and under substantive examination，two of which are international patents.
The automotive motor team of AEDS is a group of people, who are thoughtful, responsible, energetic and practical. They complement each other in profession, age, personality and strength. Being dedicated to work and serious and responsible to the team, serving customers warmly and being unwavering to the goals and highly executive is the true reflection of every member of the automotive motor team of AEDS.
The electromagnetic design team of AEDS, represented and led by two scientific elites Zhang Junjie and Zhang Xu, has successfully designed high-end motors such as hub motors, axle motors, frameless motors, servo motors and shaftless propellers through skillfully using our unique technologies and patents to meet the needs of various customers.
Of them, Engineer Zhang Junjie ever attended Intermag - an international conference on magnetism for academic exchange, published an SCI paper and was granted one invention patent, and Engineer Zhang Xu applied for four invention patents and published an EI conference paper and an EI journal paper as the first author. These two people are typical representatives of the technical team of AEDS, who have a solid professional foundation, analyze things clearly and logically, are good at teamwork and keep improving in R&D.
The AEDS process design and production team consisting of process designers and production engineers represented by Bao Yajun and Chen Feng has rich practical experience in prototype manufacturing and large-scale production. Under the limited time and conditions, the team has completed the process design of several new models of hub motors, axle motors, frameless motors, servo motors and shaftless propellers, as well as the trial production of new products, and met all the challenging requirements of the customers.
